Introduction

AllegroGraph has implemented extensions allowing users to query MongoDB databases using SPARQL and to execute heterogeneous joins, even though MongoDB, a NoSQL JSON document store, does not natively support joins, SPARQL or RDF-enabled linked data.

In this document, we describe how to configure AllegroGraph and MongoDB to work together.

Interfacing with MongoDB

The steps for using MongoDB with AllegroGraph are:

Please note that populating and maintaining the MongoDB database is separate from adding or deleting triples from the AllegroGraph repository. Adding or deleting data from one does not automatically synchronize with the other.

Installing MongoDB

MongoDB is not a Franz Inc. product. Setting up and maintaining a MongoDB database is a separate task and must be accomplished outside of AllegroGraph. See the MongoDB website for details.

In the rest of this document, we assume you have the MongoDB server installed and running on a computer you can access.

Synchronizing MongoDB data with AllegroGraph

You must link AllegroGraph data and MongoDB data referring to the same object. Use the MongoDB _id field as the linking variable between the two databases. That value is typically an ObjectId but that is not a requirement. This means that you need to add a triple like (for example)

    ex:subject1001 <http://www.franz.com/hasMongoId> 4561

where 4561 is the unique MongoDB id for the document associated with ex:subject1001 in the repository. The datatype of that triple's object is significant and will depend on the datatype you use for the ids in you MongoDB documents. Use the following RDF datatypes for each id type in MongoDB:

Configuring AllegroGraph with MongoDB connection settings

MongoDB connection settings

  1. The server where MongoDB is running

  2. The port on which MongoDB is listening

  3. The name of the database you are using

  4. The name of the MongoDB collection you are using

  5. (Optional unless you are using authentication) the username and password that will let you connect to the database

These parameters can be set using AGWebView, the HTTP interface, or the Lisp interface, as we describe below in this document.

The AGWebView interface

AGWebView is the browser-based interface to AllegroGraph. To use it with MongoDB, go to the Repository Overview page and click on the link under Store Control which says Manage external MongoDB connection (indicated by a red arrow):

WebView link to MongoDB

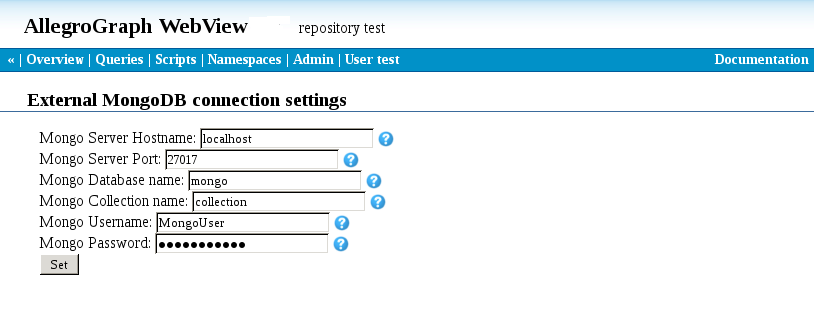

On the linked page, you can set the necessary MongoDB parameters.

WebView Mongo page

The HTTP interface

The AllegroGraph HTTP Protocol supports GET mongoParameters and POST mongoParameters. See The HTTP Protocol.

The Lisp interface

Use these Lisp functions to get and set these parameters:

get-mongo-parameters &key  db
function

Returns the current Mongo connection parameters in a property list.

Currently it contains these items:

  • :server - The server name where MongoDB is running
  • :port - The port to use to communicate with MongoDB
  • :database-name - The name of the database to use when querying MongoDB
  • :collection-name - The name of the collection to use when querying MongoDB
  • :user - Used to authenticate to the Mongo DB server

Note, the :password from set-mongo-parameters is not returned.

set-mongo-parameters &rest  args  &key  db  port  server  database-name  collection-name  user  password
function

Set MongoDB connection parameters.

You can set any combination of:

  • :server
  • :port
  • :database-name
  • :collection-name - required to be non-empty
  • :user - optional
  • :password - optional

MongoDB and SPARQL

Once you have a MongoDB database set up and running and have added the linking triples to its associated AllegroGraph repository, you can query it with SPARQL using the following magic predicate (note /4.7/ rather than the current release number -- the initial release for the interface is used and not updated so code does not have to be changed when you upgrade to a later release):

<http://franz.com/ns/allegrograph/4.7/mongo/find>

As MongoDB is a JSON-style document store, it is also queried using a JSON-style notation. Given the following data in MongoDB:

{ _id: "1",
  Name: "Finn",
  Occupation: "Great Hero",
  Alignment: "Good" }
{ _id: "2",
  Name: "Jake",
  Occupation: "Best Friend",
  Alignment: "Good" }
{ _id: "3",
  Name: "Ice King",
  Occupation: "King",
  Alignment: "Bad" }
{ _id: "4",
  Name: "Gunter",
  Occupation: "Servant",
  Alignment: "Bad" }

and the following linking triples in AllegroGraph 1 :

@prefix f: <http://www.franz.com/> .
@prefix id: <http://www.example.com/id#> .
@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .

id:subject1 f:hasMongoId "1" ;
            f:likes id:subject3 ;
            f:likes id:subject2 .

id:subject2 f:hasMongoId "2" .
id:subject3 f:hasMongoId "3" .
id:subject4 f:hasMongoId "4" .

A query which finds people with Good Alignment who like people with Bad Alignment would look like:

prefix mongo: <http://franz.com/ns/allegrograph/4.7/mongo/>
prefix f: <http://www.franz.com/>
select ?good ?bad {
  ?good mongo:find '{ Alignment: "Good" }' .
  ?bad mongo:find '{ Alignment: Bad" }' .
  ?good f:likes ?bad .
}

which returns

?good     ?bad
==================
subject1  subject3

Footnotes

  1. Note that both the ObjectIDs in MongoDB and the objects of the linking triples use plain literals.
